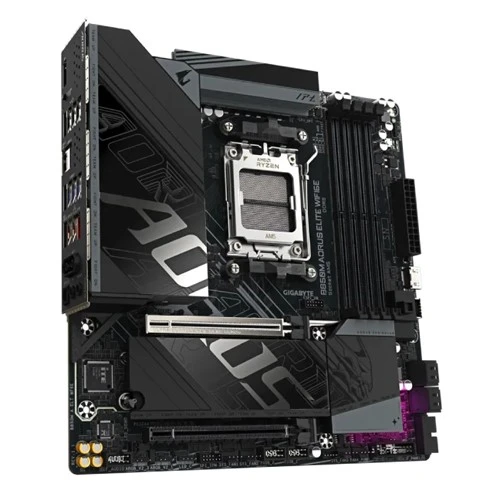

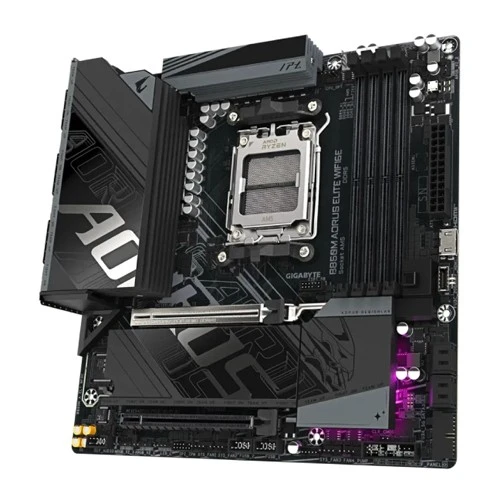

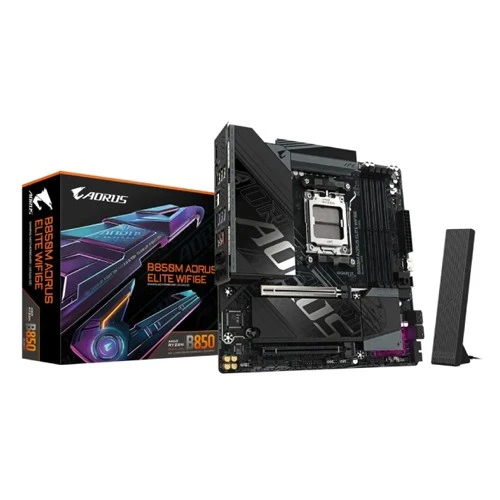

Matična ploča AM5 Gigabyte B850M AORUS ELITE WF6E
5
People watching this product now!
Opis
| Model | Gigabyte B850M AORUS ELITE WIFI6E AM5 DDR5 Micro ATX Matična ploča |
| Socket | AMD Socket AM5 |
| Skup čipova (Chipset) | AMD B850 |
| Podrška za procesore | AMD Ryzen 9000 Series Processors AMD Ryzen 8000 Series Processors AMD Ryzen 7000 Series Processors |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 4x 288-Pin DDR5 |
| Podrška za memorije | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Podrška za grafiku – portovi | Integrated Graphics Processor with AMD Radeon Graphics support: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160 144Hz Support for DisplayPort 1.4 version and HDR. – 1 x Front HDMI port, supporting a maximum resolution of 1920×1080 30Hz |
| Slotovi za proširenja | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: |
| M.2 portovi | 2x M.2 Socket 3 |
| Čuvanje podataka – portovi | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Bežična mreža | Realtek Wi-Fi 6E RTL8852CE – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| Bluetooth | 5.3 |
| Zvuk (Audio) | Realtek Audio CODEC (Only for rev. 1.0) High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out Realtek ALC1220 CODEC (Only for rev. 1.1) High Definition Audio Support for S/PDIF Out |
| USB portovi | CPU: – 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset: – 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers |

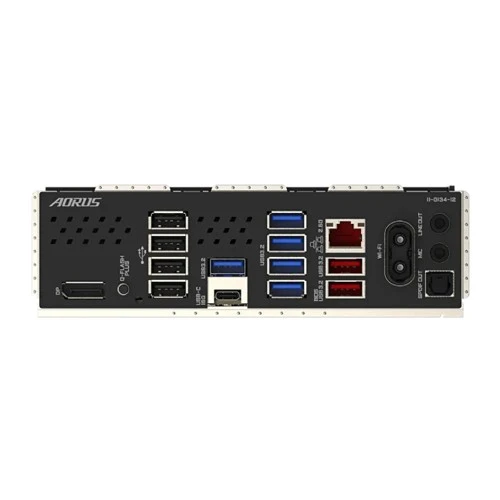

| Konektori na zadnjoj strani | 1 x DisplayPort (Note) 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 5 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Posebne mogućnosti | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Voltage detection |
| Operativni sistem | Windows 10; Windows 11 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | Micro ATX |
| Link ka proizvodjacu | https://www.gigabyte.com/ |
| Model: | Matična ploča AM5 Gigabyte B850M AORUS ELITE WF6E |
| Robna grupa: | AMD matične ploče |
| Uvoznik: | Precizan podatak o uvozniku je dostupan na deklaraciji proizvoda |
| Zemlja porekla: | Precizan podatak o zemlji porekla je dostupan na deklaraciji proizvoda |
| Prava potrošača: | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
